Tokenization

Introduction

DES provides digitization, tokenization, provisioning and lifecycle management of payment credentials. This is being performed on behalf of Norwegian issuers and is achieved through a connection with a Baltus Node.

This documentation outlines the interplay between the DES Issuer API and the Issuer Processor. It does not go into depth on the ecosystem outside this relationship.

xPays

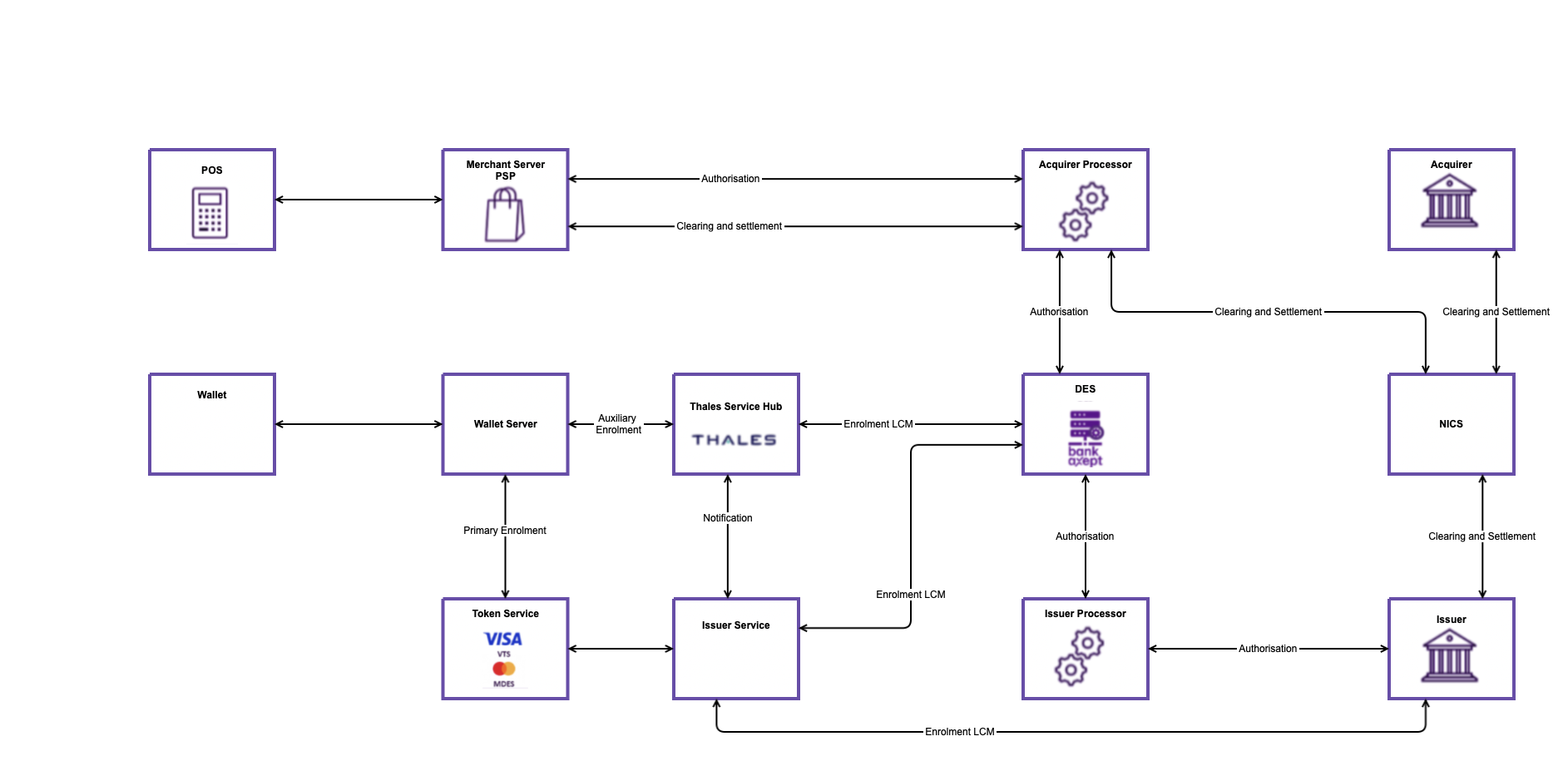

DES may be utilized for tokenization for various xPays. This enables BankAxept to tokenize on behalf of the BankAxept Issuing Banks. Below is an illustration representing the ecosystem in which DES operates.


HCE wallets

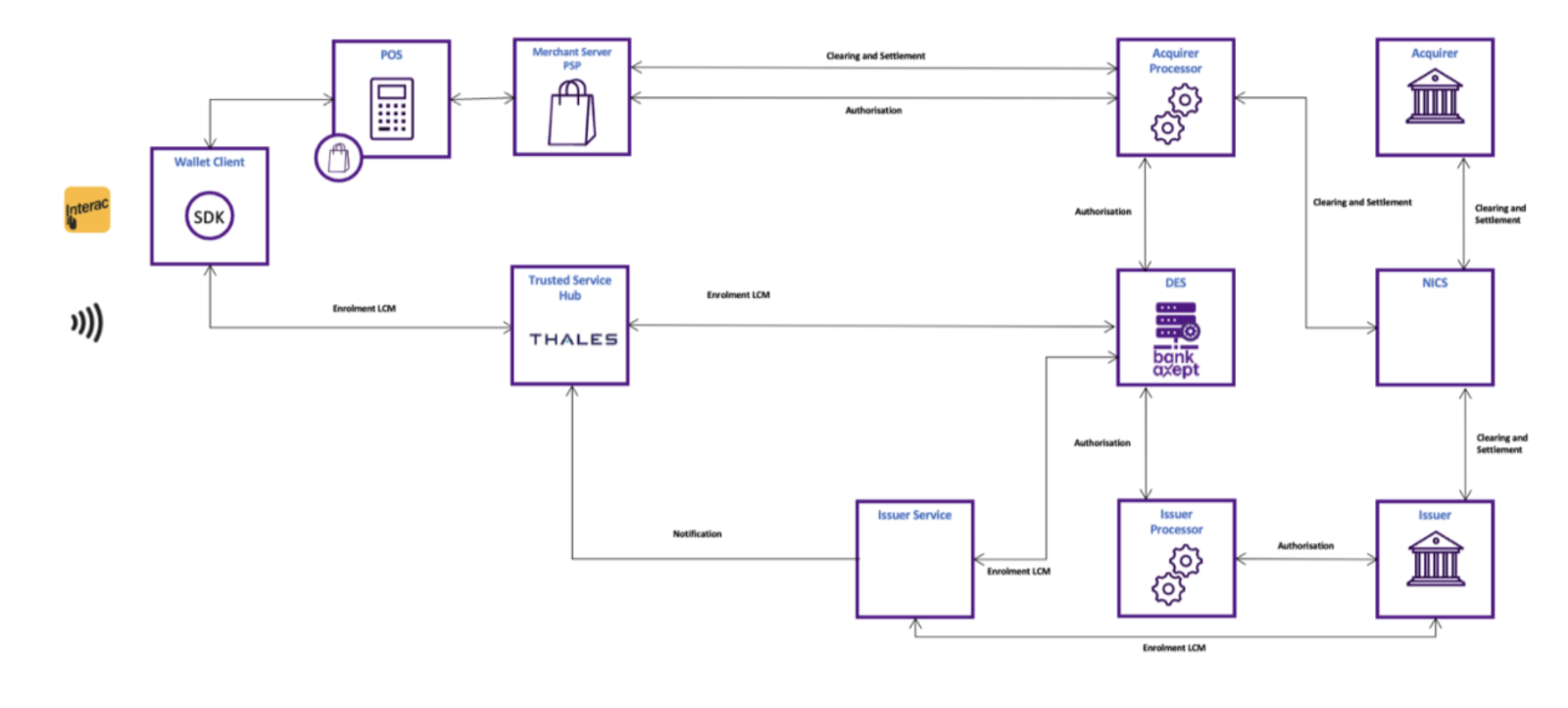

DES may be utilized for tokenization for HCE wallets. This enables BankAxept to tokenize on behalf of the BankAxept Issuing Banks. Below is an illustration representing the ecosystem in which DES operates.


Tokenization flow

Full overview

This is intended as an overview of the tokenization process in the ecosystem in a co-badged setting. Very rarely does a single actor need to know the full process. This is intended more of a reference for understanding the full process. Please peruse our dictionary for term explanation.

BankAxept's role can be seen in the Auxiliary token provisioning step, note that for epp and mono-badged it is performed as seen in the EPP flow. The IGW (Issuer Gateway) is DES's service for interfacing with the Issuer Service.

sequenceDiagram autonumber title Scandium Provisioning Flow Green box rgb(204, 204, 255) Client Device participant wallet as Wallet end box rgb(170, 221, 238) "Apple Server" participant broker as SMP-Broker participant tsm as SMP-TSM end box rgb(255, 170, 170) "Primary Partner" participant primaryBroker as ICS Broker participant primaryTSM as ICS TSM participant primaryTSP as ICS TSP end box rgb(255, 170, 202) "Auxiliary Partner" participant auxBroker as Thales Broker participant auxTSM as Thales TSM participant auxTSP as BankAxept TSP participant auxIGW as BankAxept IGW end box rgb(188, 255, 194) "Issuer" participant issuerGtw as Issuer Service participant issuer as Issuing Bank end note over wallet: User opens Wallet and taps<br/> + selects provisioning option and <br/> enters basic card data via camera or manual entry Note over wallet, issuer: Eligibility Check wallet ->> broker: Eligibility Check broker ->> primaryBroker: NetworkCheckCard primaryBroker ->> issuerGtw: VerifyAccount issuerGtw ->> issuer: Eligibility Check Note over issuer: Account status check issuer -->> issuerGtw: EligibilityCheck response issuerGtw -->> primaryBroker: VerifyAccount response primaryBroker -->> broker: NetworkCheckCard response broker -->> wallet: EligibilityCheck response Note over wallet, issuer: Primary Token Provisioning wallet ->> broker: EnableCard broker ->> primaryBroker: Link&Provision primaryBroker ->> issuerGtw: AuthoriseProvisioning(green recommendation) issuerGtw ->> issuer: Approve Provisioning Note over issuer: Fraud processing issuer -->> issuerGtw: Approve Provisioning Response issuerGtw -->> primaryBroker: AuthoriseProvisioning(green) Response Note over primaryTSM: Internal create token and person requests primaryBroker -->> broker: Link&Provision response broker -->> wallet: EnableCard response Note over wallet: Primary Token <br/> inactive in Wallet Note over wallet: Primary partner then<br/> delivers and applies <br/> perso script to SE Note over wallet, issuer: Auxiliary Token Provisioning broker ->> auxBroker: createToken auxBroker ->> auxIGW: requestCoBadgeDigitization <br/>- encrypted VISA auxIGW ->> issuerGtw: requestCoBadgeDigitization <br/>- encrypted VISA issuerGtw -->> auxIGW: - encryptedCardInfo <br/>- encrypted BankAxept auxIGW -->> auxBroker: requestCoBadgeDigitization Response <br/>- BankAxept PAN++ auxBroker ->> auxTSP: createToken auxTSP -->> auxBroker: createToken Response auxBroker -->> broker: createToken Response auxTSP ->> auxBroker: submitTokenData auxBroker -->> auxTSP: submitTokenData Response Note over auxBroker: Create perso script broker ->> tsm: activateSecondaryToken Note over auxBroker: Handle perso script auxBroker ->> auxTSP: updateTokenState <br/>- ACTIVE Note over auxTSP: Activate token auxTSP -->> auxBroker: updateTokenState Response auxBroker ->> auxIGW: notifyVirtualCardChange auxIGW ->> issuerGtw: digitizationCompleteNotification issuerGtw -->> auxIGW: digitizationCompleteNotification Response auxIGW -->> auxBroker: notifyVirtualCardChange Response Note over wallet, issuer: Activation Steps tsm ->> wallet: Deliver perso script Note over wallet: Applies Auxiliary perso script to SE wallet ->> tsm: Return perso script results primaryBroker ->> issuerGtw: notify provisioning result issuerGtw -->> primaryBroker: Request issuerGtw ->> issuer: notify provisioning result issuer -->> issuerGtw: Request Note over broker: Update pass details broker ->> wallet: Activate Pass Note over wallet: Pass Active

xPay Flow

See the dedicated section for more information here. Once an entity(xPay etc.) has started a tokenization process, the following flow is expected between the Issuer Processor and DES.

sequenceDiagram participant DES participant IssuerService DES ->> IssuerService: RequestCardDigitization IssuerService -->> DES: CardDigitizationResponse DES ->> IssuerService: DigitizationCompleteNotification IssuerService -->> DES: DigitizationCompleteNotificationResponse

EPP flow

See the dedicated section for more information here. Once an entity(ePayment integrator etc.) has started a tokenization process, the following flow is expected between the Issuer Processor and DES.

sequenceDiagram participant DES participant IssuerService DES ->> IssuerService: RequestEligibleCard IssuerService -->> DES: EligibleCardResponse DES ->> IssuerService: RequestCardDigitization IssuerService -->> DES: CardDigitizationResponse DES ->> IssuerService: DigitizationCompleteNotification IssuerService -->> DES: DigitizationCompleteNotificationResponse
